Sheets & Plates
- Products
- Sheets & Plates

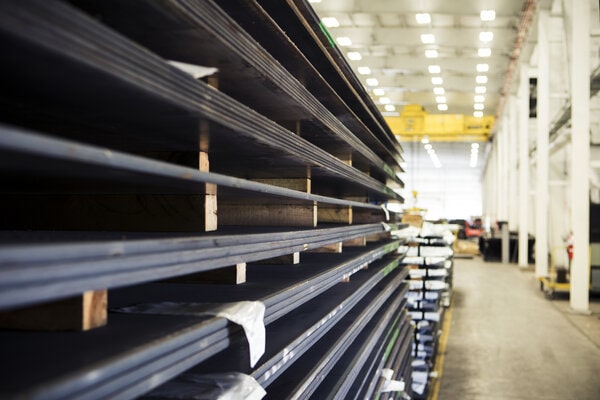

We offer wide variety of industrial steel sheets, industrial steel plates, industrial stainless steel sheets, industrial stainless steel plates, which are fabricated from finest quality of raw materials. Manufactured as per the international quality and safety standards, we offer these products in different dimensions and at highly competitive prices. These products are mostly applied in construction and engineering industry.
User Industries:
Chemicals, Fats, & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personal.
Stainless & Duplex Steel:
| Range | 0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s. |
|---|---|
| Stainless Steel | ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430 |
| Duplex Steel | ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
Nickel & Copper Alloy:
| Sheet and Plates Range : | 5 mm to 100 mm thick in upto 2500 mm width & upto 6000 length available with NACE MR 01-75s. |
|---|---|
| Nickel Alloy : | ASTM / ASME SB 162 UNS 2200 ( NICKEL 200 ) / UNS 2201 (NICKEL 201 ) ASTM / ASME SB 127UNS 4400 (MONEL 400 ) ASTM / ASME SB 424 UNS 8825 (INCONEL 825) ASTM / ASME SB 168UNS 6600 (INCONEL 600 ) / UNS 6601 ( INCONEL 601 ) ASTM / ASME SB 443 UNS 6625 (INCONEL 625) ASTM / ASME SB 574 UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 462 UNS 8020 ( ALLOY 20 / 20 CB 3 ) |
Hastelloy:
| Sheet and Plates Grades : | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000 |
|---|---|
| Form: | Hastelloy Sheet Hastelloy Coil Hastelloy Strips Hastelloy Plates Hastelloy Circle Hastelloy Ring |
Inconel Sheet and Plates:
| Grades | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 |
|---|---|
| Standard | ASTM / ASME SB 168, ASTM / ASME SB 424 , ASTM / ASME SB 443 |
Incoloy:
| Sheet and Plates Grades | Incoloy 800, incoloy 825, Incoloy 925, Incoloy a-286, Incoloy DS Type: Seamless / Erw / Welded/ Fabricated |
|---|---|
| Standard | ASTM B407, ASTM B829, ASTM B514, ASTM B775, ASTM B515, ASTM B751 |
| This range is used in | Petrochemicals Plants Oil Refineries Fertilizers Plants Sugar Mills Chemical Plants Pharmaceuticals Textile Machinery |
Monel:
| Sheet and Plates Grades | 0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s. |
|---|---|
| Type | ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430 |
| Form | Round, Square, Rectangular, Hydraulic etc. |
| Length | Single Random, Double Random & Cut Length |
| End | Plain End, Beveled End, Threaded |
| The salient features are as follows | Hot Dipped Galvanizing Epoxy & Fbe Coating Electro Polish Draw & Expansion |
Titanium:
| Sheet and Plates Specifications | 0.1 mm to 100 mm thick upto 2500 mm width & upto 8000 mm length available with NACE MR 01-75s. |
|---|---|
| Material | ASTM / ASME SA 240 304 , 304L , 304H, 309S , 309H, 310S , 310H , 316 , 316H , 316L , 316 TI , 317 , 317L , 321 , 321H , 347 , 347 H , 409 , 410 , 410S , 430 |
| Pure Titanium Grade | ASTM / ASME SA 240 UNS NO. S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Titanium Alloy Grade | GR5 (6% Al, 4%V) GR6 (5% AL, 2.5%Sn) Gr.7 (Titanium + Pd) Gr.9 (3% Al, 2.5%V) Gr.10 (11.5%Mo, 6% Zr, 4.5% Sn) Gr.11 (Titanium + Pd) Gr.12 (0.3% Mo, 0.8% Ni) |
Tantalum:
| Specifications | tantalum sheet, tantalum plate, tantalum foil |
|---|---|
| Grade | RO5200, Ro5400,RO5252,RO5255 |
| Standard | ASTM B708-98 |
| Size | T0.1-10.0mm We are factory specializing in the manufacture and export Tantalum and Niobium prodcut for more than ten years,Including foil tube ,rod,wire,sheet,plate, ,rod,strip,target and so on We can supply the best quallity and low price. Tantalum sheets, Tantalum- tungsten alloy sheets(Ta2.5W, Ta10W) |
| Purity | 99.95%min or 99.99%min conformity with ASTM B 708 98 |
